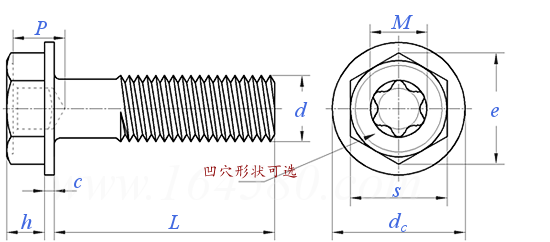

梅花槽六角凸緣頭螺釘 [TABLE 2.2.10-2 VI] ASME B 18.6.3 (H10B-VI) - 2024
| 選擇規格尺寸 點擊↓ 5# 6# 8# 10# 12# 1/4 5/16 3/8 |
尺寸單位:
inch |
|
![ASME B 18.6.3 (H10B-VI) - 2024 梅花槽六角凸緣頭螺釘 [TABLE 2.2.10-2 VI]](https://imgccc.164580.com/upload/48/pic_cadpara/1492_zh.png?ue=1772589079&local=cache&tp=canvas&pict=png)
![美標ASME B18.6.3 (H10B-VI) - 2024 ASME18.6 梅花槽六角凸緣頭螺釘 [TABLE 2.2.10-2 VI]](https://imgccc.164580.com/upload/48/pic/2023/11/17/1700206021729472479.jpg)
![ASME B 18.6.3 (H10B-VI) - 2024 梅花槽六角凸緣頭螺釘 [TABLE 2.2.10-2 VI]](https://img.164580.com/upload/48/qrcode_standardurl/24961.png)
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ①,允許六角面所有邊緣和棱角略有圓鈍。 ②,六角面與凸緣頂面結合處的圓角半徑R不得大于螺釘公稱直徑的0.15倍。 ③,若以小數規定公稱直徑，應省略小數前和小數點后第四位的零。 ④,凹槽插入測量深度由凹槽槽深和凹槽插入深度兩部分組成，由于凹穴槽深的變化是客觀存在的，故凹槽插入測量深度可由制造者和用戶協商確定。 |
同版本產品組
長度公差
Machine screws can be made to any length, but they are generally produced in fractional length increments of 1/16 in. for screws up to 5/8 in. long, 1/8 in. for screws over 5/8 in. through 1-1/2 in. long, and 1/4 in. for screws over 1-1/2 in. long.
標稱螺釘尺寸的長度公差 | |||
標稱螺釘長度 | 螺紋規格 | ||
0000~00 | 0~12 | 1/4~3/4 | |
≤1/2 | -0.01 | -0.02 | -0.03 |
＞1/2,≤1 | -0.02 | -0.03 | -0.03 |
＞1,≤2 | / | -0.06 | -0.06 |
＞2 | / | -0.09 | -0.09 |
